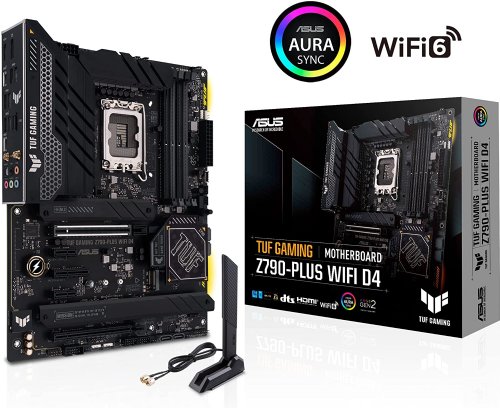

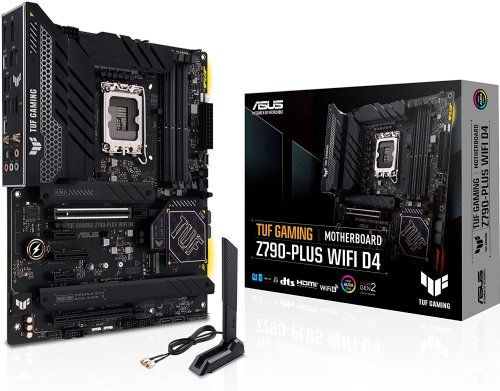

ASUS TUF Gaming Z790-PLUS WIFI 6E is Designed with Military-Grade Components (Latest 13th Gen. Intel Core Processors, Game-Ready Feature to Provide Unwavering Gaming Stability...

ASUS TUF Gaming Z790-PLUS WIFI 6E is Designed with Military-Grade Components and Game-Ready Feature to Provide Unwavering Gaming Stability with the Latest 13th Gen. Intel Core Processors

• Intel LGA 1700 socket: Ready for 12th&13th Gen Intel Core processors, support PCIe 5.0 and out of box Windows 11 ready

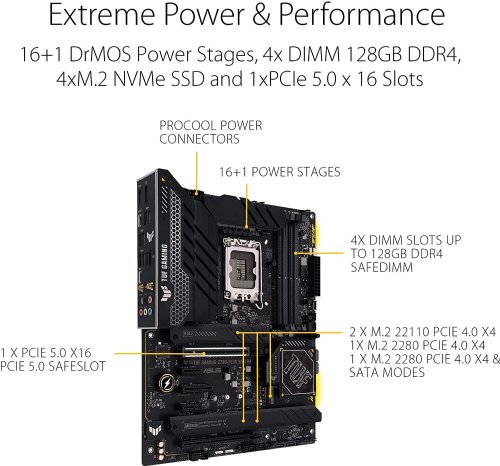

• Enhanced Power Solution: 16+1 DrMOS, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
• Comprehensive Cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
• Ultra Fast Gaming Networking: WiFi 6 AX201 (802.11 ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology
• Fastest Connectivity: 4x M.2/NVMe SSD, Front panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and Thunderbolt 4 (USB4) header
• PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, Pre-mount I/O shield
• New TUF Gaming Aesthetics: New ID design, Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips with Aura Sync
• Immersive Gaming Audio & AI Noise Cancellation: The Realtek S1200A codec offers pristine audio quality

• Dimensions&Miscellaneous

  Model:	TUF GAMING Z790-PLUS WIFI
  Width:	12 Inch
  Depth:	9.6 Inch

• Primary Information

  Mainboard Form Factor:	ATX
  Mainboard / Chipset Type:	Intel Z790
  Compatible Processors:	13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  Audio Output:	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
  Networking Type:	1 x Intel 2.5Gb Ethernet; TUF LANGuard
  Features:	ASUS TUF PROTECTION: DIGI+ VRM (Digital power design with DrMOS); ESD Guards; TUF LANGuard; Overvoltage Protection; Safeslot; Stainless-Steel Back I/O; ASUS Q-Design: M.2 Q-Latch; PCIe Slot Q-Release; Q-DIMM; Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]); Q-Slot; ASUS Thermal Solution: M.2 heatsink; VRM heatsink design; ASUS EZ DIY: CPU Socket lever protector; ProCool; Pre-mounted I/O shield; SafeDIMM; AURA Sync: Aura RGB header; Addressable Gen 2 headers

• Processor

  Processor / Socket Type:

  FCLGA1700

• Memory

  RAM / Technology:	DDR4
  Data Integrity Check:	Non-ECC
  RAM / Max Supported Size:	128 GB

• Storage

  Controller Interface Type:

  SATA 6 Gb/s; M.2

• Expansion

  Expansion Slots Total (Free):	Intel 13th & 12th Gen Processors: 1 x PCIe 5.0 x16 slot; Intel Z790 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x4 slot; 2 x PCIe 3.0 x1 slots
  Interfaces & Connections:	DisplayPort; HDMI; USB 3.2 Gen 2x2 port (1 x USB Type-C); USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C); USB 3.2 Gen 1 ports (4 x Type-A); Audio jacks
