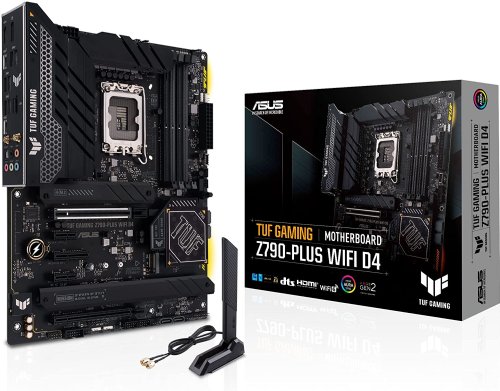

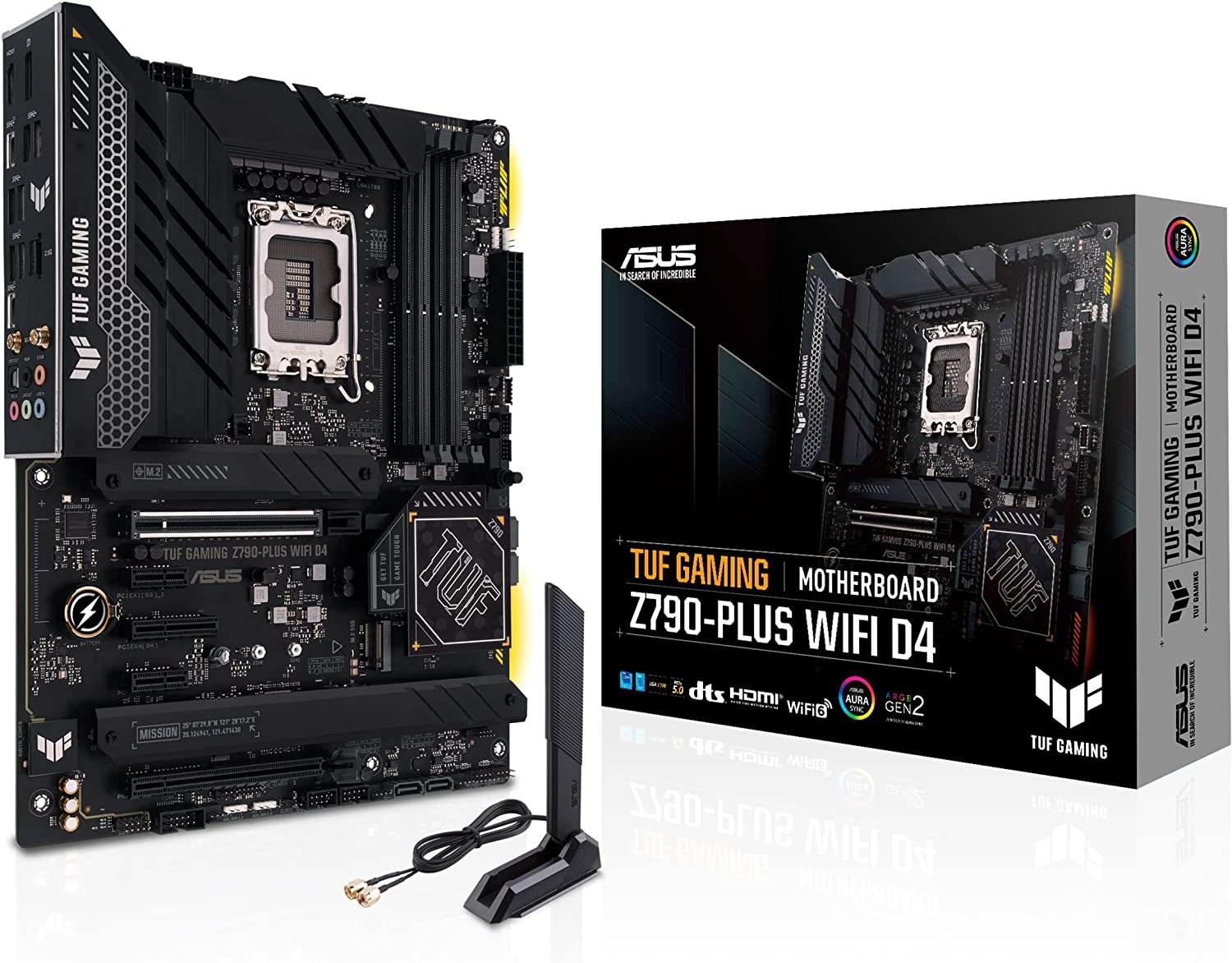

TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel12th&13th Gen) ATX Gaming Motherboard, (PCIe 5.0, DDR4, 4xM.2 Slots, 16+1 DrMOS, WiFi 6,2.5Gb LAN, Front USB 3.2...

ASUS TUF Gaming Z790-Plus WiFi D4 LGA 1700(Intel12th&13th Gen) ATX Gaming Motherboard, (PCIe 5.0, DDR4, 4xM.2 Slots, 16+1 DrMOS, WiFi 6,2.5Gb LAN, Front USB 3.2 Gen 2 Type-C, Thunderbolt 4/USB4)

• Intel LGA 1700 socket: Ready for 12th&13th Gen Intel Core processors, support PCIe 5.0 and out of box Windows 11 ready
• Enhanced Power Solution: 16+1 DrMOS, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance
• Comprehensive Cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
• Ultra Fast Gaming Networking: WiFi 6 AX201 (802.11 ax), Intel I225-V 2.5Gb LAN, TUF LANGuard and TurboLAN technology
• Fastest Connectivity: 4x M.2/NVMe SSD, Front panel USB 3.2 Gen 2 Type-C header, USB Gen 2x2 Type-C and Thunderbolt 4 (USB4) header
• PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, Pre-mount I/O shield
• New TUF Gaming Aesthetics: New ID design, Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips with Aura Sync
• Immersive Gaming Audio & AI Noise Cancellation: The Realtek S1200A codec offers pristine audio quality

• Dimensions&Miscellaneous

  Model:	TUF GAMING Z790-PLUS WIFI D4
  Width:	12 Inch
  Depth:	9.6 Inch

• Primary Information

  Mainboard Form Factor:	ATX
  Compatible Processors:	Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
  Audio Output:	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
  Networking Type:	1 x Intel 2.5Gb Ethernet

• Processor

  Processor / Socket Type:

  Socket LGA1700

• Memory

  RAM / Technology:	DDR4 DIMM
  Data Integrity Check:	Non-ECC
  RAM / Max Supported Size:	128 GB

• Storage

  Controller Interface Type:

  PCI Express

• Expansion

  Expansion Slots Total (Free):	1 x PCIe 5.0 x16 slot
  Interfaces & Connections:	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
